1–16 samples per run
Throughput fits startup batches, teaching labs, and mobile or field programs that do not need a full 96-sample instrument.

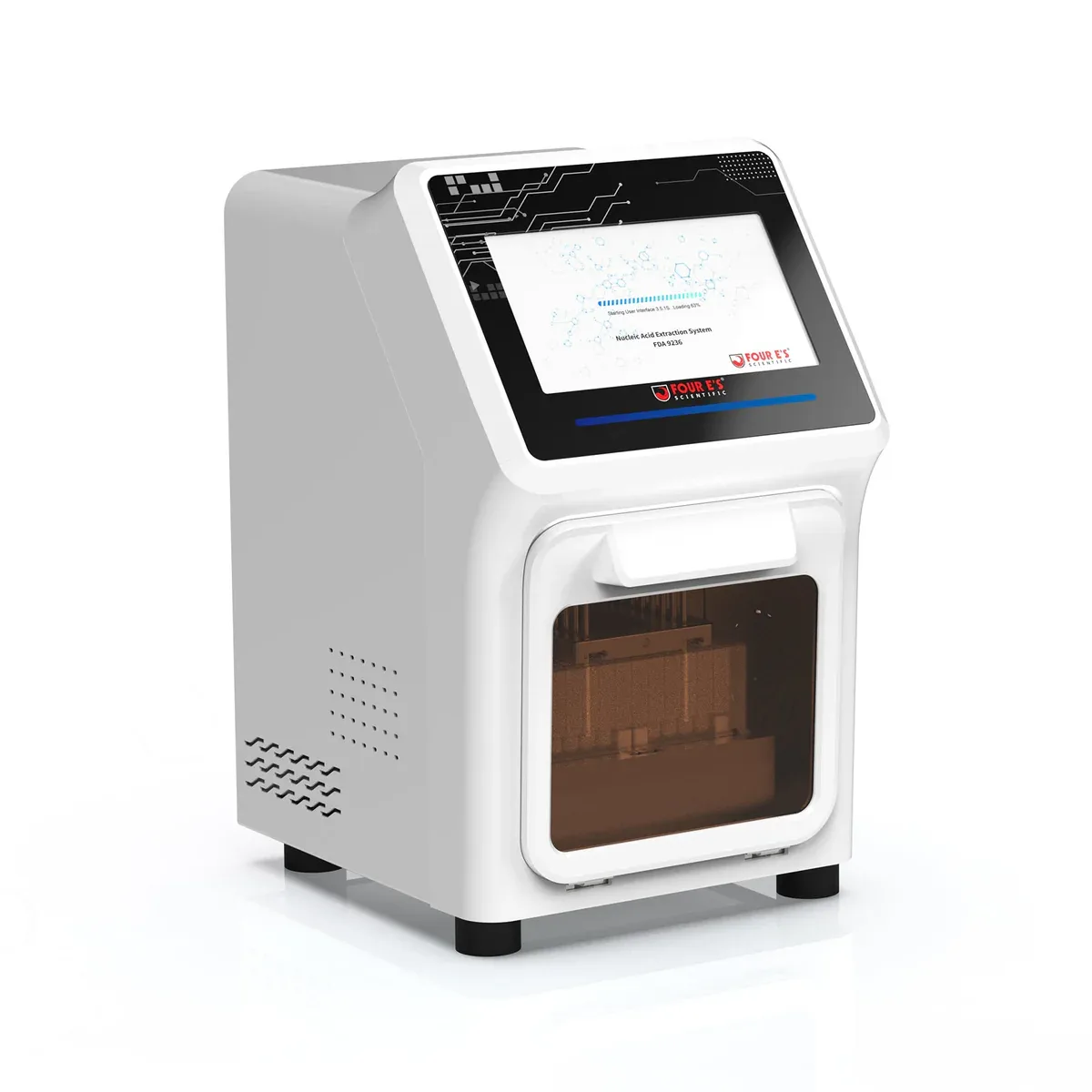

Model MultiEX 016 · benchtop 16-sample extractor
Compact benchtop nucleic acid extraction for 1–16 samples per run
Magnetic-bead automation on 96-deep well plates · 7-inch touchscreen · optional 24V battery · open-system kits (confirm kit IFU)
- 1–16 samples per run on 96-deep well plates
- 50–1000 µL processing volume · 37°C to 125°C heating
- Optional field battery · built-in UV sterilization (vendor-stated)
Key Specifications
Model MultiEX 016
Throughput 1–16 samples per run
Processing volume 50–1000 µL
Footprint 210 × 250 × 315 mm · 9 kg
Why labs evaluate the MultiEX 016
Molecular, clinical, and research labs that run smaller batches need a benchtop nucleic acid extractor without dedicating a full high-throughput line. The MultiEX 016 processes 1–16 samples per run on a 96-deep well plate with magnetic-bead separation.
Manufacturer specifications list 50–1000 µL processing volume, heating from 37°C to 125°C, eight mixing levels, and stirring up to 10 Hz. An auto-check function verifies plate and magnetic rod positioning before a run.
The open-system design supports magnetic-bead kits from multiple suppliers — confirm compatibility with your kit instructions for use (IFU) before validation.
- Throughput-fit automation
- Magnetic-bead workflow clarity
- Quote-first purchase path
- Workflow fit
- Automated bind, wash, and elute on vendor-specified plate formats.
- Kit approach
- Open-system magnetic-bead kits — confirm kit IFU before validation.
- Buying path
- Purchase inquiry with throughput, sample type, and volume class details.

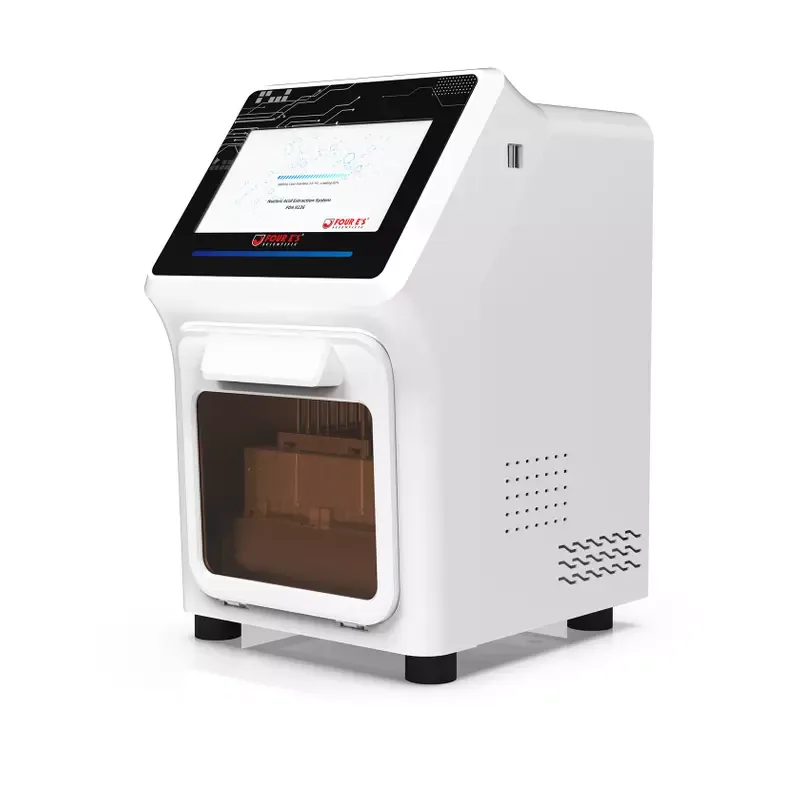

More MultiEX 016 photos
Compact footprint
210 × 250 × 315 mm footprint and 9 kg weight support bench placement where space is limited.
Optional battery operation
24V DC with included 100–240V adapter; optional 24V 5A external battery for field-deployable setups (vendor-stated).
Protocol control on-device
Create, edit, and delete protocols; store more than 500 programs; import and export via 2× USB ports.
Match 16-sample throughput to your batch size before you compare larger MultiEX tiers — submit a purchase inquiry for kit fit and availability.
Key features
- ✓ Magnetic bead-based separation
- ✓ 1–16 samples per run
- ✓ 96-deep well plate (conical / round bottom)
- ✓ 50–1000 µL processing volume
- ✓ Heating 37°C to 125°C
- ✓ 8 adjustable mixing levels · up to 10 Hz stirring
- ✓ Auto-check for plate and magnetic rod positioning
- ✓ 7-inch color touchscreen
- ✓ Built-in UV sterilization (vendor-stated)
- ✓ Open-system magnetic-bead kits (confirm kit IFU)
- ✓ Optional 24V 5A external battery
- ✓ 2× USB program import/export
- ✓ Noise under 55 dB (vendor-stated)
Ideal applications
Priority 01
Startup & growing labs
Challenge: First automated extraction platform with limited bench space and budget.
Value: Entry throughput tier with full numeric specs for evaluation and purchase planning.
Priority 02
Field & mobile programs
Challenge: Power and portability for on-site nucleic acid prep.
Value: Compact unit with optional battery — confirm deployment requirements during inquiry.
Priority 03
Research & teaching
Challenge: Mid-low batch sizes with protocol flexibility.
Value: On-device program management and open-system reagent path (confirm kit IFU).
What's in the box
Typical shipment includes core instrument and power — confirm accessories with your specialist.
- MultiEX 016 extractor
- 100–240V AC adapter
- User manual
- 7-inch touchscreen (integrated)
- UV disinfection (integrated)
- 24V 5A battery (Optional)
- Magnetic bead reagent kit (Optional)
- 96-deep well plates (Optional)
Technical specs and compatibility
Designed for fast technical review. Final compliance and warranty wording remains marked until approved documentation is published.
| Model / SKU | MultiEX 016 |
|---|---|
| Throughput | 1–16 samples per run |
| Processing volume | 50–1000 µL per sample |
| Plate type | 96-deep well plate (conical / round bottom) |
| Processing time | Typically 20–40 minutes (reagent dependent) |
| Heating range | 37°C to 125°C |
| Temperature accuracy | ±1.5°C (vendor-stated) |
| Mixing | 8 levels · up to 10 Hz stirring |
| Magnetic bead recovery | Up to 98% (vendor-stated; confirm kit and sample type) |
| Inter-well variance | CV < 3% (vendor-stated; protocol dependent) |
| Display | 7-inch color touchscreen |
| UV sterilization | Built-in (vendor-stated) |
| Power | 24V DC · 100–240V AC adapter included |
| Battery | Optional 24V 5A external battery |
| USB ports | 2× USB |
| Noise | Under 55 dB (vendor-stated) |
| Dimensions (W × D × H) | 210 × 250 × 315 mm |
| Weight | 9 kg |
| Reagent system | Open-system magnetic-bead kits (confirm kit IFU) |
Interested in purchasing for your lab?
Share the model, volume, and purchase timeline for your purchase inquiry.
Frequently asked questions
Answers focused on practical buying and implementation questions from lab managers, scientists, and startup founders.
Is the MultiEX 016 a benchtop or portable nucleic acid extractor?
Manufacturer specifications describe a compact benchtop footprint (210 × 250 × 315 mm, 9 kg) with optional 24V 5A external battery for field-deployable setups (vendor-stated).
How many samples per run?
1–16 samples per run per manufacturer specifications.
What plate format does it use?
One 96-deep well plate per run (conical or round bottom).
Can it run on battery power?
24V DC with included adapter; optional 24V 5A external battery is listed for field use (vendor-stated).
What reagent kits are supported?
Open-system design for magnetic-bead kits — confirm compatibility with your kit IFU.
How long does a run take?
Typically 20–40 minutes depending on reagent kit and volumes (manufacturer-stated).
Does it verify setup before a run?
Manufacturer describes an auto-check function for 96-well plate and magnetic rod positioning.
How many programs can be stored?
Manufacturer specifications list storage for more than 500 programs.
What warranty applies?
Use conservative 12-month manufacturer-stated warranty framing unless extended terms are confirmed at purchase.
How do I get pricing?
Submit a purchase inquiry with model, throughput needs, sample types, and timeline — pricing is provided on inquiry, not on this site.
Related buying guides
Continue evaluating workflow fit, model specs, and integration requirements.
Warranty
Manufacturer warranty
The MultiEX 016 includes manufacturer warranty coverage per vendor documentation. Confirm warranty terms when making a purchase inquiry.
