1–32 samples per run
Fits molecular diagnostics mid-shift batches and research programs between compact and full-plate throughput.

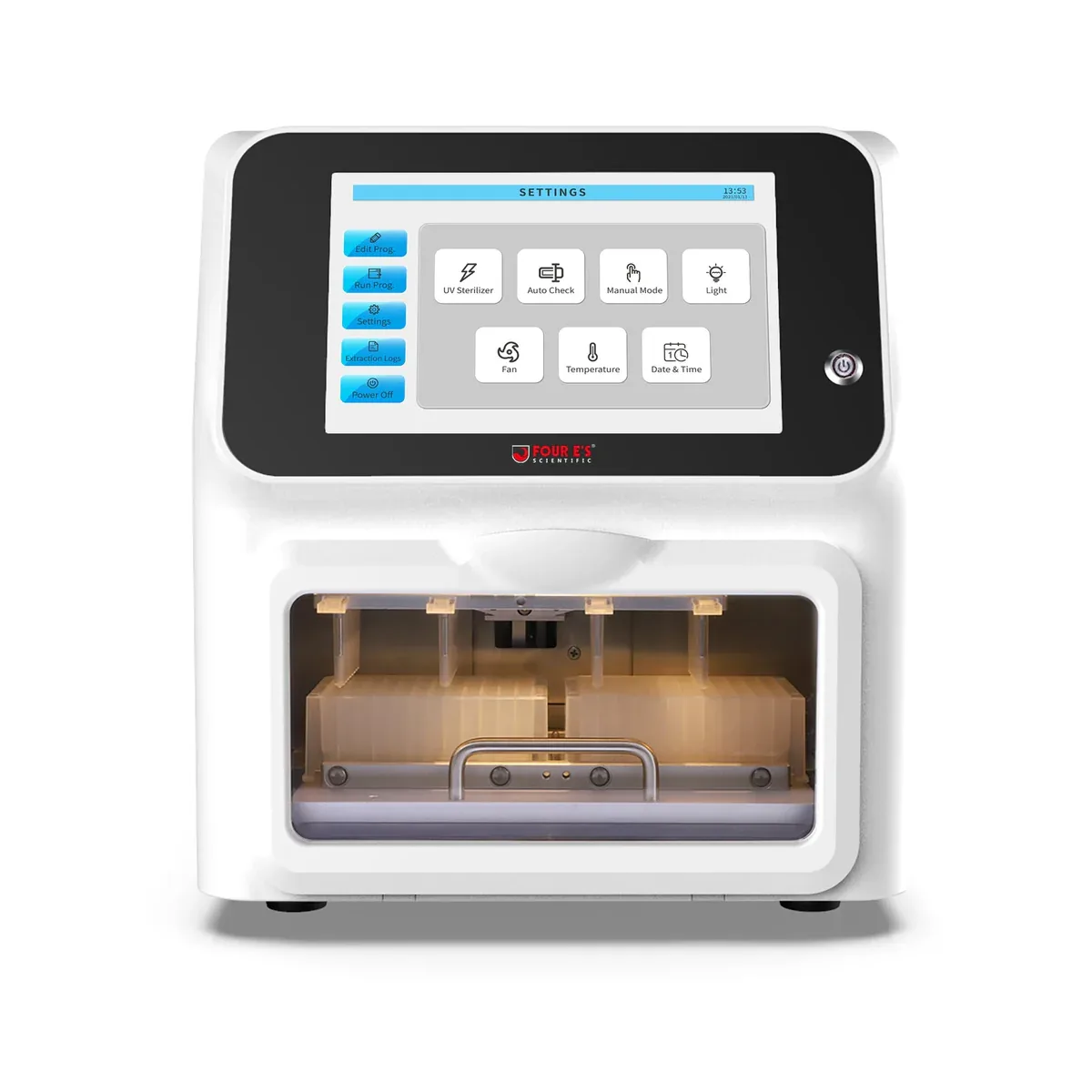

Model MultiEX 032 · 32-sample extractor
Mid-throughput automated DNA and RNA extraction for 1–32 samples per run
Independent heating modules · auto-check · 10-inch touchscreen · UV disinfection · open-system kits (confirm kit IFU)
- 1–32 samples per run on 96-well deep-well plates
- Multiple heating modules with individual temperature control
- Auto-check verifies plate and magnetic rod positioning
Key Specifications
Model MultiEX 032
Throughput 1–32 samples per run
Processing volume 50–1000 µL
Footprint 349 × 325 × 390 mm · 25 kg
Mid-throughput DNA extraction automation for molecular labs
Clinical, reference, and biotech labs that outgrow 16-sample batches but do not yet need a full 96-well run often land in the mid-throughput band. The MultiEX 032 processes 1–32 samples per run with magnetic-bead automation.
Manufacturer specifications include independent heating modules, 37°C to 125°C range, auto-check before runs, built-in UV disinfection, and stirring up to 10 Hz. Noise is under 55 dB on manufacturer pages (USA page lists under 50 dB).
Use open-system magnetic-bead kits with IFU confirmation — do not assume universal kit compatibility.
- Throughput-fit automation
- Magnetic-bead workflow clarity
- Quote-first purchase path
- Workflow fit
- Automated bind, wash, and elute on vendor-specified plate formats.
- Kit approach
- Open-system magnetic-bead kits — confirm kit IFU before validation.
- Buying path
- Purchase inquiry with throughput, sample type, and volume class details.
More MultiEX 032 photos
Manufacturer overview
Overview of the MultiEX 032 mid-throughput automated nucleic acid extraction system (manufacturer video).
Operating instructions
Manufacturer walkthrough of instrument operation and workflow setup (manufacturer video).

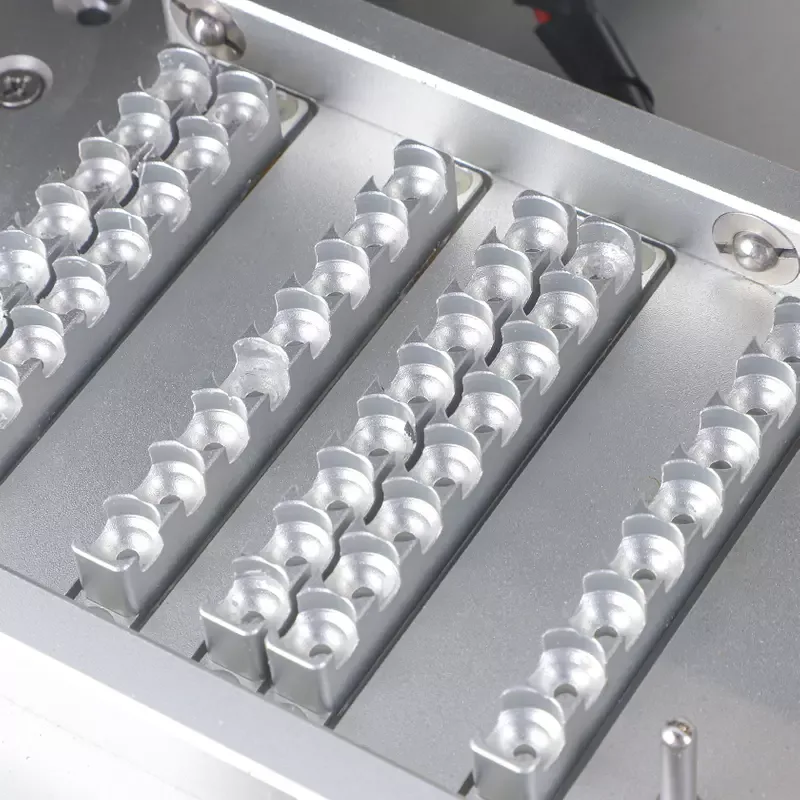

Independent heating modules
Multiple zones with individual temperature control for lysis and elution workflows (vendor-stated).
Pre-run auto-check
Verifies 96-well plate and magnetic rod positioning before the run starts (vendor-stated).
Automated workflow + UV
Fully automated bind/wash/elute with built-in UV disinfection and safety door interlock (vendor-stated).
Compare MultiEX 032 against 016 and 096P tiers on throughput, heating architecture, and contamination controls before purchase inquiry.
Key features
- ✓ 1–32 samples per run
- ✓ 96-well deep-well plates
- ✓ 50–1000 µL processing volume
- ✓ Independent heating modules
- ✓ Auto-check (plate + magnetic rods)
- ✓ 10-inch color touchscreen
- ✓ UV disinfection (vendor-stated)
- ✓ Stirring up to 10 Hz
- ✓ 2× USB · 1× Ethernet
- ✓ Open-system kits (confirm kit IFU)
- ✓ Noise under 55 dB (manufacturer pages vary)
Ideal applications
Priority 01
Molecular diagnostics
Challenge: Reliable mid-shift batch prep before PCR or qPCR.
Value: 32-sample throughput with heating and auto-check features documented in vendor specs.
Priority 02
Pharma & biotech R&D
Challenge: Multi-temperature protocols and reproducibility.
Value: Independent heating zones and vendor-stated recovery/CV metrics (confirm with your kit).
Priority 03
Reference labs
Challenge: Scaling from manual columns without full 96-well investment.
Value: Step-up tier from MultiEX 016 with documented mid-throughput specs.
What's in the box
Confirm packing list and optional validation services during purchase inquiry.
- MultiEX 032 extractor
- Power cord
- User manual
- 10-inch touchscreen (integrated)
- Heating modules (integrated)
- Magnetic bead reagent kit (Optional)
- 96-deep well plates (Optional)
- Validation service (Optional)
Technical specs and compatibility
Designed for fast technical review. Final compliance and warranty wording remains marked until approved documentation is published.
| Model / SKU | MultiEX 032 |
|---|---|
| Throughput | 1–32 samples per run |
| Processing volume | 50–1000 µL per sample |
| Plate type | 96-well deep-well plate |
| Plate quantity | 2 (manufacturer capacity line) |
| Processing time | Typically 20–40 minutes (reagent dependent) |
| Heating range | 37°C to 125°C |
| Heating modules | Multiple — independently controlled |
| Mixing | 8 levels · up to 10 Hz |
| Magnetic bead recovery | Up to 98% (vendor-stated; confirm kit) |
| Inter-well variance | CV < 3% (vendor-stated; protocol dependent) |
| Auto-check | Plate and magnetic rod positioning |
| UV disinfection | Built-in (vendor-stated) |
| Display | 10-inch color touchscreen |
| Connectivity | 2× USB · 1× Ethernet |
| Power | 100–240 VAC, 50/60 Hz |
| Noise | Under 55 dB (manufacturer pages vary) |
| Dimensions (W × D × H) | 349 × 325 × 390 mm |
| Weight | 25 kg |
| Reagent system | Open-system magnetic-bead kits (confirm kit IFU) |
| Safety | Safety door interlock — operation pauses when door opens (vendor-stated) |
Interested in purchasing for your lab?
Share the model, volume, and purchase timeline for your purchase inquiry.
Frequently asked questions
Answers focused on practical buying and implementation questions from lab managers, scientists, and startup founders.
How many samples per run?
1–32 samples per run per manufacturer specifications.
Does auto-check include rod sleeves?
Manufacturer copy for MultiEX 032 supports plate and magnetic rod verification — confirm rod-sleeve scope with your kit IFU.
What is the noise level?
Use under 55 dB for public copy; USA manufacturer page lists under 50 dB.
Does it support independent heating modules?
Yes — manufacturer specifications list multiple heating modules with individual temperature control.
What connectivity is included?
2× USB ports and 1× Ethernet port per manufacturer specifications.
How is cross-contamination controlled?
Built-in UV disinfection, automated workflow, and safety door interlock on manufacturer pages (vendor-stated).
What performance metrics does the manufacturer publish?
Vendor-stated magnetic bead recovery up to 98% and inter-well CV under 3% — confirm with your kit and sample type.
How do I get pricing?
Submit a purchase inquiry — pricing is provided on inquiry, not on this site.
Related buying guides
Continue evaluating workflow fit, model specs, and integration requirements.
Warranty
Manufacturer warranty
The MultiEX 032 includes manufacturer warranty coverage per vendor documentation. Confirm warranty terms when making a purchase inquiry.
