Up to 96 samples per run
Matches high-throughput PCR, qPCR, and NGS sample-prep batch sizes on a single instrument.

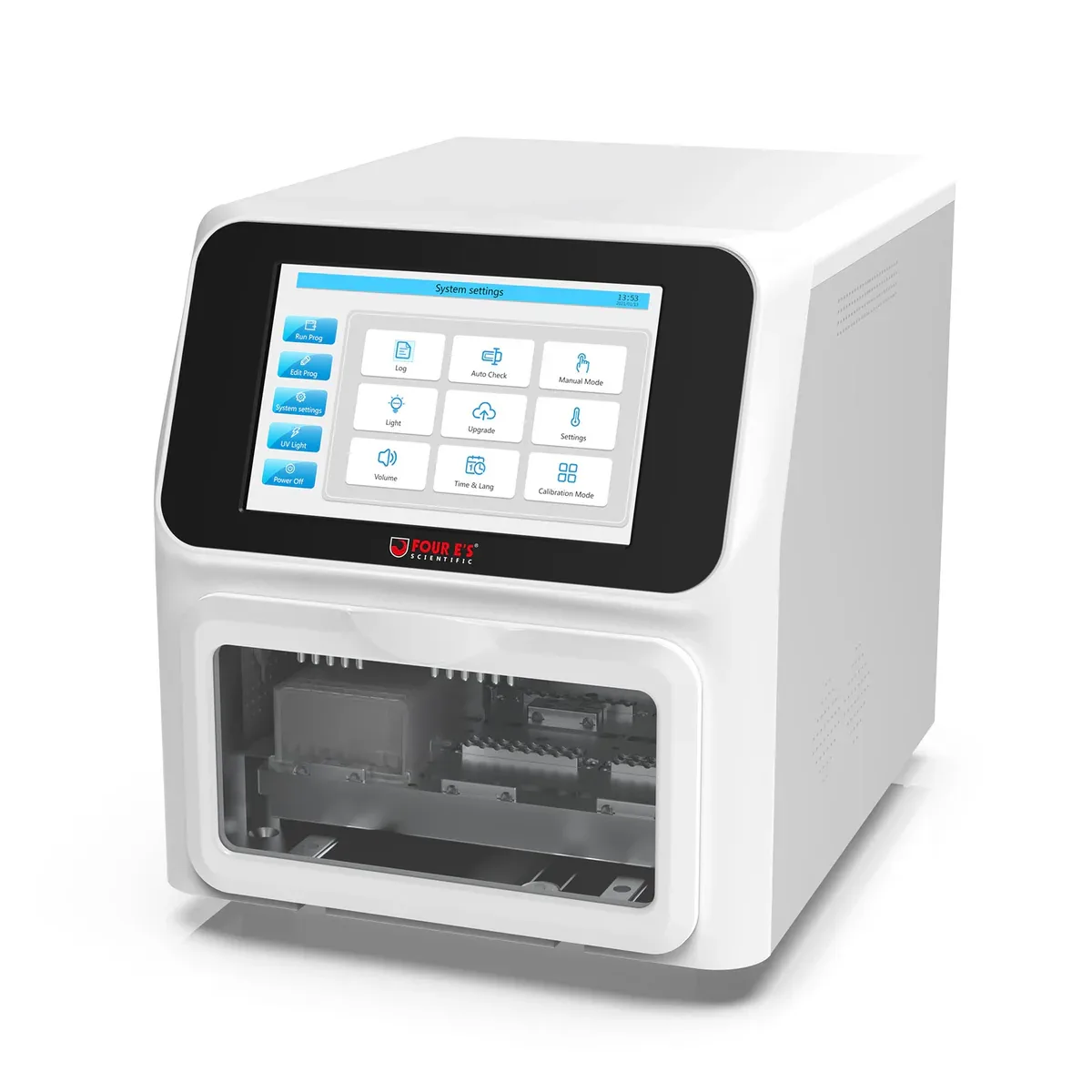

Model MultiEX 096P · 96-sample extractor
High-throughput automated nucleic acid extraction for up to 96 samples per run
Full 96-well plate runs · 10-inch touchscreen · USB import/export · UV + filtered ventilation · auto-check for sleeve, rod, and plate
- 1–96 samples per run — owns “96 sample” throughput intent
- Magnetic rod sleeves required · up to 6 plates capacity line
- Successor to MultiEX 096 with compact design (vendor-stated)
Key Specifications
Model MultiEX 096P
Throughput 1–96 samples per run
Processing volume 50–1000 µL
Noise Under 60 dB (manufacturer pages vary)
Why high-throughput labs evaluate the MultiEX 096P
Diagnostic, NGS sample prep, and screening workflows that align with full 96-well downstream plates need an extractor that can process up to 96 samples in one run. The MultiEX 096P is the full-plate tier in the MultiEX family.
Manufacturer specifications list 50–1000 µL processing volume, heating 37°C to 125°C, auto-check for sleeve/rod/plate positioning, USB program management, and contamination controls including UV sterilization and filtered ventilation (HEPA per manufacturer).
Weight and footprint specifications conflict between manufacturer pages — those rows are omitted here until resolved. Noise is under 60 dB for conservative public copy.
- Throughput-fit automation
- Magnetic-bead workflow clarity
- Quote-first purchase path
- Workflow fit
- Automated bind, wash, and elute on vendor-specified plate formats.
- Kit approach
- Open-system magnetic-bead kits — confirm kit IFU before validation.
- Buying path
- Purchase inquiry with throughput, sample type, and volume class details.

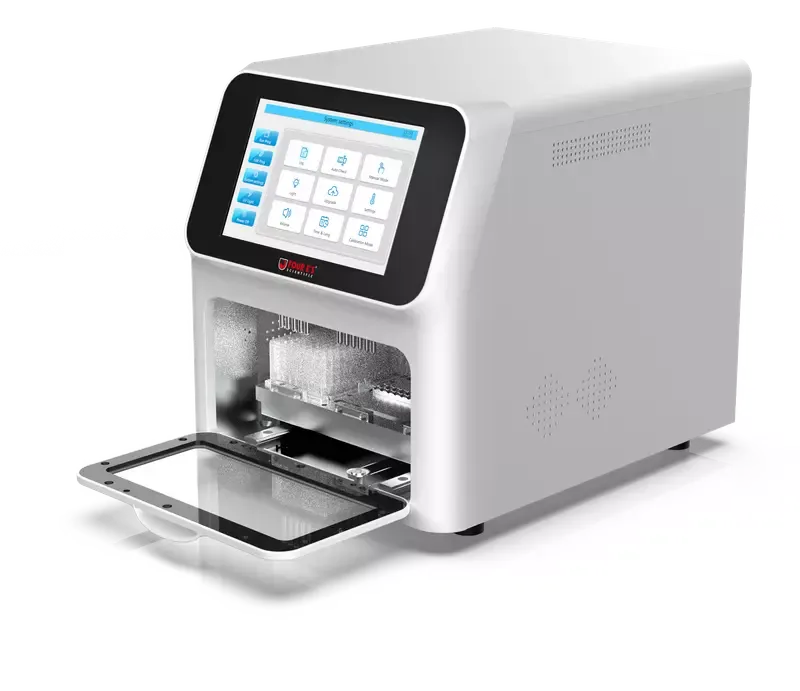

More MultiEX 096P photos
Auto-check before each run
Verifies magnetic rod sleeve, rod, and well plate positioning (vendor-stated).
USB program workflow
Create, edit, and delete protocols; import/export and system upgrade via USB.
Contamination controls
UV sterilization and filtered ventilation designed to reduce aerosol escape (qualified wording).
“96-well plate” describes format shared across MultiEX models — MultiEX 096P owns up to 96 samples per run, not merely plate compatibility.
Key features
- ✓ 1–96 samples per run
- ✓ 96-well deep-well plates (round bottom)
- ✓ Magnetic rod sleeves required
- ✓ 50–1000 µL processing volume
- ✓ 10-inch color touchscreen
- ✓ USB import/export and upgrade
- ✓ Auto-check: sleeve, rod, plate
- ✓ UV + filtered ventilation (HEPA per manufacturer)
- ✓ Heating 37°C to 125°C
- ✓ Noise under 60 dB (manufacturer pages vary)
- ✓ Open-system kits (confirm kit IFU)
Ideal applications
Priority 01
High-throughput diagnostics
Challenge: Full-shift batch extraction before molecular testing.
Value: 96-sample throughput with documented auto-check and ventilation features.
Priority 02
NGS & screening labs
Challenge: Plate-aligned sample prep at scale.
Value: Full-plate runs with USB protocol management.
Priority 03
Clinical molecular labs
Challenge: Contamination-aware automation at scale.
Value: Closed-system design language with UV and filtration — avoid absolute “zero contamination” claims.
What's in the box
Confirm optional plates, sleeves, and validation with your specialist.
- MultiEX 096P extractor
- 10-inch touchscreen (integrated)
- UV disinfection (integrated)
- Filtered ventilation (integrated)
- Power cord · user manual
- DPU-032/96 plates (Optional)
- MRS-096P rod sleeves (Optional)
- Magnetic bead reagent kit (Optional)
Technical specs and compatibility
Designed for fast technical review. Final compliance and warranty wording remains marked until approved documentation is published.
| Model / SKU | MultiEX 096P |
|---|---|
| Throughput | 1–96 samples per run |
| Processing volume | 50–1000 µL per sample |
| Plate type | 96-well deep-well plate (round bottom) |
| Plate capacity | Up to 6 plates (manufacturer capacity line) |
| Consumables | Magnetic rod sleeves required (MRS-096P per manufacturer catalog) |
| Optional plate (catalog) | DPU-032/96 — 96-well deep-well plate, 2.2 mL, U-bottom (DNase/RNase free, non-sterile; confirm IFU) |
| Optional rod sleeves (catalog) | MRS-096P — magnetic rod sleeve for MultiEX 096P (DNase/RNase free, non-sterile; confirm IFU) |
| Processing time | Typically 20–40 minutes (reagent dependent) |
| Heating range | 37°C to 125°C |
| Temperature accuracy | ±1.5°C (vendor-stated) |
| Mixing | 8 levels · 10 Hz maximum stirring |
| Magnetic bead recovery | Up to 98% (vendor-stated; confirm kit) |
| Inter-well variance | CV < 3% (vendor-stated; protocol dependent) |
| Auto-check | Sleeve, rod, and plate positioning |
| Contamination control | UV sterilization · filtered ventilation (HEPA per manufacturer) |
| Display | 10-inch color touchscreen |
| USB | 2× USB — programs and system upgrade |
| Power | 100–240 VAC, 50/60 Hz |
| Noise | Under 60 dB (manufacturer pages vary) |
| Reagent system | Open-system magnetic-bead kits (confirm kit IFU) |
Interested in purchasing for your lab?
Share the model, volume, and purchase timeline for your purchase inquiry.
Frequently asked questions
Answers focused on practical buying and implementation questions from lab managers, scientists, and startup founders.
What is the maximum throughput?
1–96 samples per run per manufacturer specifications.
Are weight and dimensions listed?
Manufacturer pages currently conflict on weight and dimensions — confirm via datasheet or purchase inquiry before planning bench layout.
How is this different from other MultiEX models on 96-well plates?
All MultiEX models use 96-well plate formats; only 096P processes up to 96 samples per run.
What consumables does the manufacturer list?
Magnetic rod sleeves (catalog MRS-096P) are required. Optional deep-well plates are listed as DPU-032/96 on the manufacturer catalog — confirm kit IFU before ordering.
Can protocols be imported or exported?
Yes — manufacturer specifications list program import and export via USB.
How does MultiEX 096P relate to MultiEX 096?
Manufacturer describes MultiEX 096P as a successor to MultiEX 096 with a more compact design while maintaining up to 96 samples per run.
What plate capacity is listed?
Manufacturer capacity line lists up to 6 plates.
How do I get pricing?
Submit a purchase inquiry — pricing is provided on inquiry, not on this site.
Related buying guides
Continue evaluating workflow fit, model specs, and integration requirements.
Warranty
Manufacturer warranty
The MultiEX 096P includes manufacturer warranty coverage per vendor documentation. Confirm warranty terms when making a purchase inquiry.
